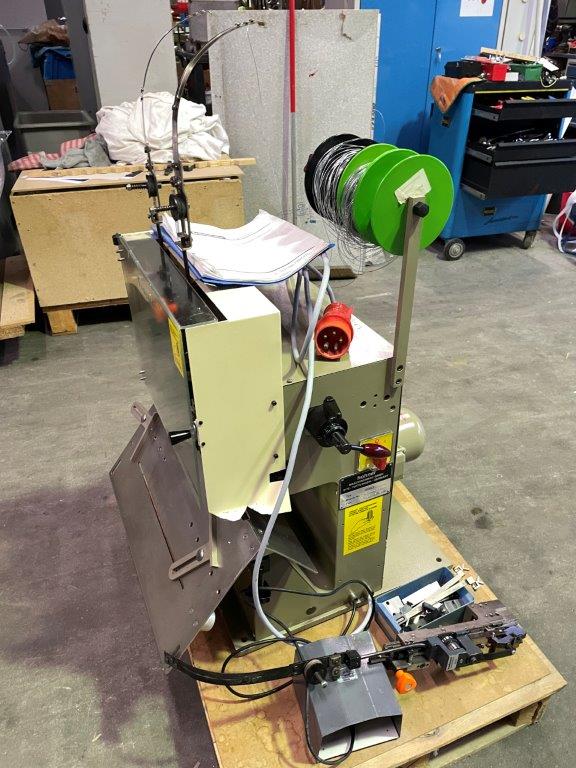

Table multi-head block and booklet wire stitching machine HOHNER EXACT for normal stitching
year of construction 1991 – completely workshop overhauled

Installation of up to four HOHNER UNIVERSAL 52/8 narrow stitching heads for
Normal stitching, ring eyelet stitching or mixed application.
Equally suitable as a stand-alone machine or as a built-in unit.

-Maximum staple thickness of 8 mm for normal stapling
-Easily adjustable stapling table: straight for pads, angled for booklets.
-The staple strength and wire length are adjusted simultaneously and centrally for all heads
adjusted via only one lever.
-One rear stop and two side stops, all adjustable, provide
to ensure that the brackets are always positioned at the desired location.
-Stitching heads can be removed or attached quickly, and the stitching heads can be
can be postponed or simply switched off temporarily.

-Maximum stapling capacity: 206 staples / minute per head.

-Foot release
-Table size: 550 x 280 mm
-insertion depth from doorbell box 165 mm
-clamp distance max. 330mm
-clamp distance min. 52-62 mm
