An Unwilling Traveller

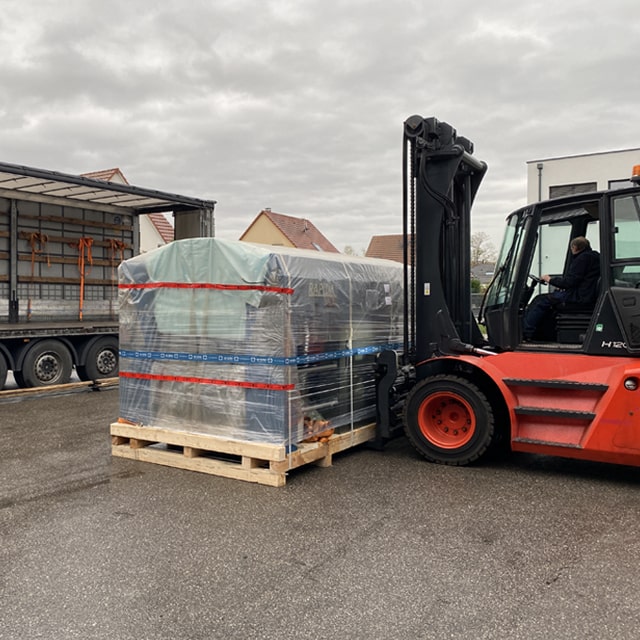

In its long life, a popular used printing machinery like Heidelberg CD 102 or CD 74 changes several owners. Like a traveller, it may visit different countries or even continents. We cannot know how the previous owners dismantled the machine or how it was transported. Every disassembly and subsequent reassembly of a printing machine is a serious stress on the machinery.

I remember a Heidelberg CD 74 machine where the floor reinforcement was not made all around the machine. The machine was standing correctly, but its delivery would bounce when the speed was increased. Excessive vibration led to spontaneous loosening of nuts and uneven wear of gears!

Needless to say, this error leads to increased wear and tear on any machine, regardless of the manufacturer. No matter whether it’s a Heidelberg CD 102 or even Manroland Evolution, an incorrectly installed new machine quickly becomes a wreck. The owner thinks he got an unreliable machine and should look for an excellent Heidelberg XL 105, for example, which is sure to be more reliable.

Once the decision to sell is made, the owner usually stops investing in its condition. The equipment may be on the market for six months, or even longer. All this time, the machine is still holding up thanks to the reliability of the brand and the care of the staff.

And that’s where the buyer comes in…

The key point before buying a printing machine is to assess its technical condition. Obviously, it is impossible to carry out a complete diagnosis of all assemblies, units, peripherals in a few hours. This would require several days and the availability of specialised equipment. In addition, prolonged shutdown of a printing machine in a print shop is not possible for commercial reasons.

So, what’s a buyer to do if they have a couple of hours to inspect a printing machine? All he can do is check the equipment visually, or with a printed test obtained from the internet.

But the problem is 99% of the tests that a potential buyer brings with him are intended to control the parameters that lie in the field of technology (control of dot gain, SLUR/doubling, trapping, streakmarks), etc. and are not an objective factor in assessing the technical (in particular, mechanical) condition of the printing press.

These printing of these control elements will tell you a lot about the technological process in a particular printing house, about the humidity conditions, about the selected inks and the qualification of the printer, but not about the real condition of the sheet-fed system of the printing machine.

Everything has been invented long ago

Definitely not – the customer will see no more than 30 per cent of what our expert will notice. Whether you are buying a Heidelberg CD 102, Manroland 700 or KOMORI Lithrone, compared to the potential costs of fixing problems, our inspection will require minimal time and money. This will allow you to make an objective assessment before you buy. We start by assessing the condition of the cylinders and the sheet transfer unit. It is very important to determine the condition of the sheet feed system on machines with a sheet perfecting module like the Heidelberg SM 102-8-P. In case of hidden problems, it is very difficult and expensive to repair.

The Heidelberg service manual clearly states: the operator must turn the perfector back and forth at least once every fortnight. When trying to shift a mechanism clogged with a mixture of paper dust and oil, it can easily be broken. Many printers ignore this. And for a new owner, it can be a serious problem.

Traces of previous dismantling also matter. We have encountered situations where negligent service technicians have lost the calibrated plates that set the distance between sections. If the Heidelberg SM74 machine is dismantled into parts of 2 printing units, the Heidelberg CD74 or XL75 is disassembled unit by unit. The loss of one of the plates can lead to uneven installation and damage to the gears. The machine will soon no longer hold register.

In addition, the condition of peripheral devices should be checked. AirStar compressors on Heidelberg machines rarely live longer than ten years. A new AlсoSmart alcohol dispenser for a Heidelberg CD102 machine costs around 5K euros. Repairing a Heidelberg Axis Control can cost tens of thousands of euros.  And so on. Wouldn’t it be better to pass these costs on to the seller? Just compare these expenses with the cost of our inspection and make the right decision. Your risk is inappropriate here.

More than 35 years of experience in offset sheetfed printing and marketing. After practising at printing companies, he received a higher education at the Moscow State University of Printing. He was directly involved in introducing such companies as Heidelberger Druckmaschinen (1997), Boettcher systems (2010), ROEPA (2011), as well as a number of printing houses of different sizes and directions to the CIS market.

Higher technological education at the Moscow State University of Printing as a technologist of printing production. Professional certification at Heidelberg Print Media Academy. Over 12 years of experience, first as a regional representative, then as a branch manager of Heidelberger Druckmaschinen Osteuropa Vertriebs-GmbH. Since 2011 – a trading partner of H. Roesinger & Partner (France). Higher education in digital marketing and SEO.

Thanks to our extensive experience, together with our excellent team, we help print shops to eliminate gaps in the technological process and organisational structure. We have been working for print shops for many years – rebuilding sales systems, designing sales websites and optimising existing printing equipment.
