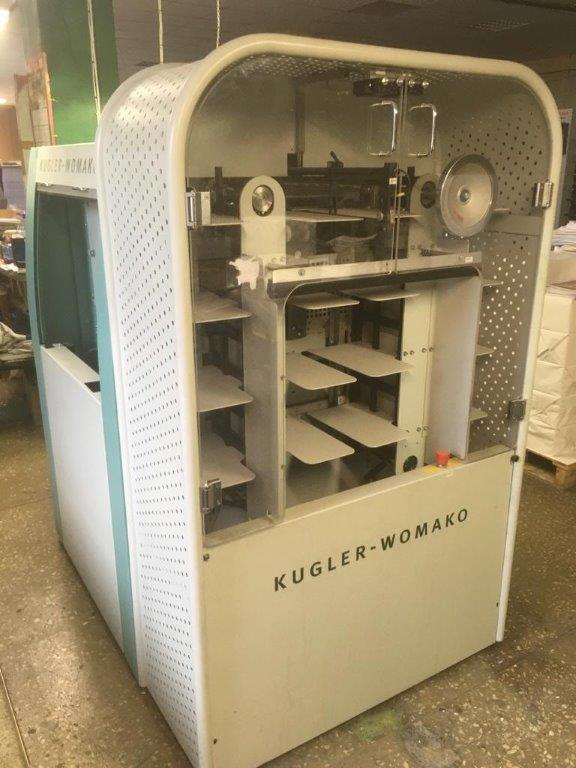

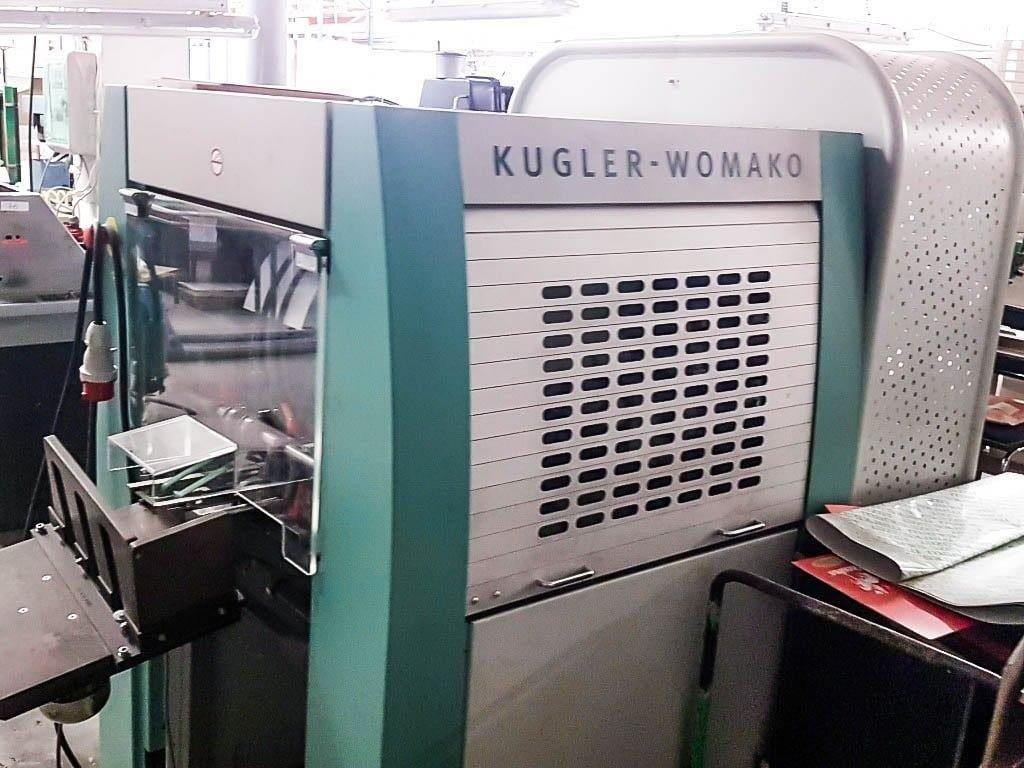

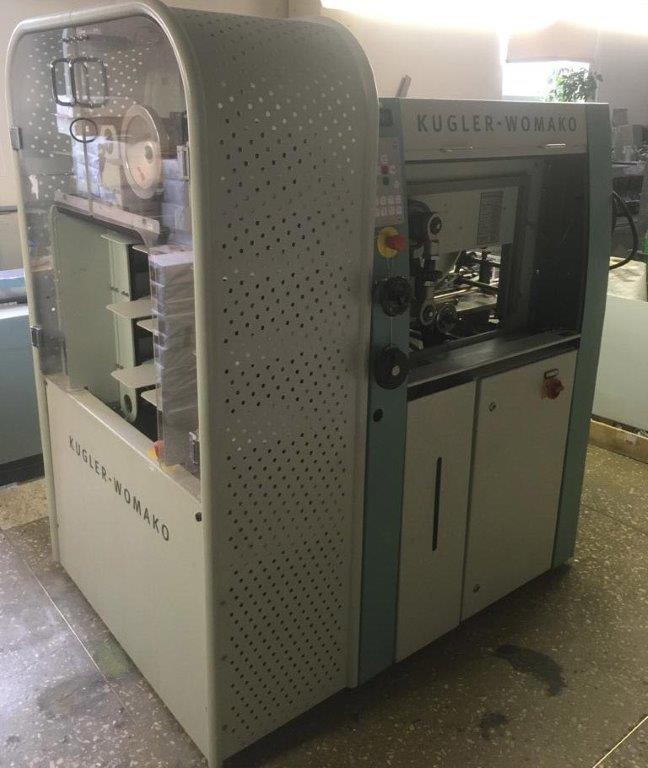

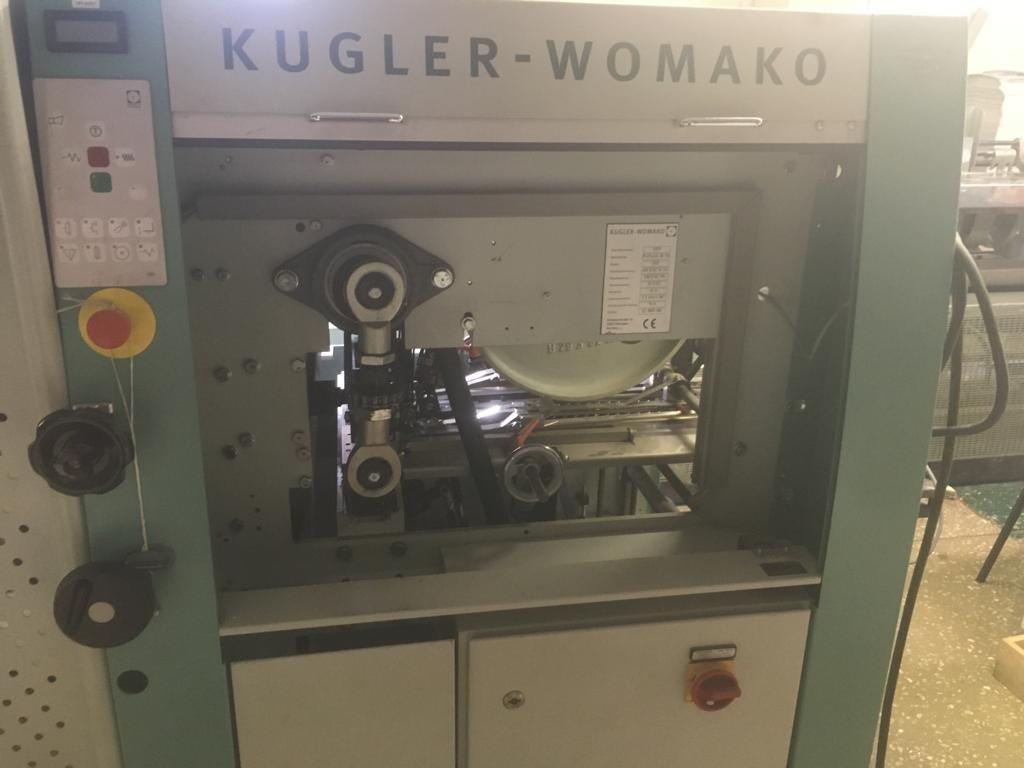

automatic die cutter Kugler Womako ProPunch 36 incl. Punchingtool 36cm, 4×4, Pitch 3:1
Year 2012

Purpose: for organizations with a large amount of work, for the production of block calendars, notebooks and notebooks

Maximum paper size, mm: 360 x 360
Minimum paper size, mm: 105 x 105
Sheet perforation: up to 3 mm (30 sheets)
The density of the paper used, g/m2: 60 — 400
Paper feeding: automatic continuous with the help of a three-flow automatic feeder
Tula mount: eccentric mount
Productivity (bindings / hour): 110 beats / min.
Switchable knives: no
Time to replace the format, min: 5-10 min
Power supply, W: electric power 220V/440V / 50Hz / 2KW

Additional tools: perforation for separation, cutting under the register, file.
Format setting: manual
Time to replace Tula, min: up to 5
Weight, kg: 1150 kg
Dimensions (WxDxH), mm: 1750x1200x2000
