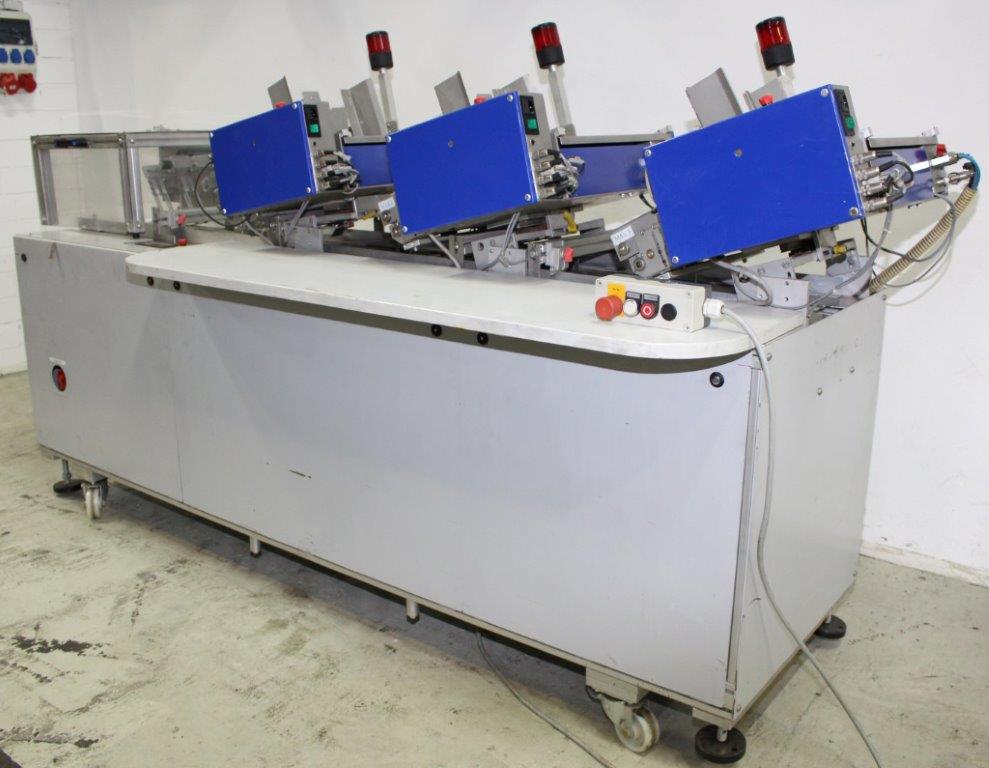

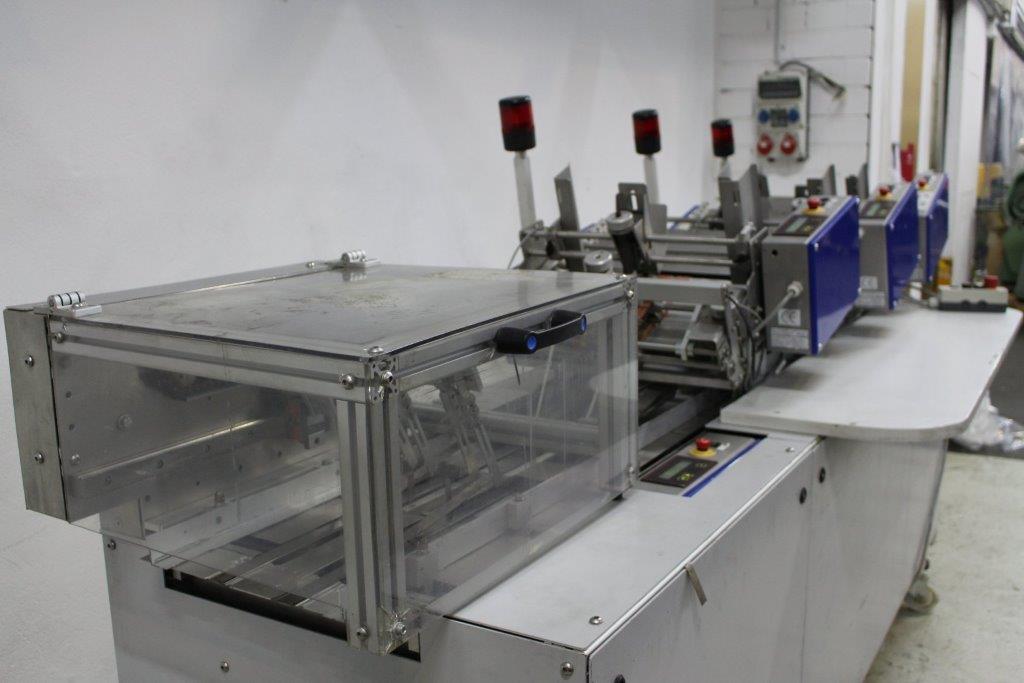

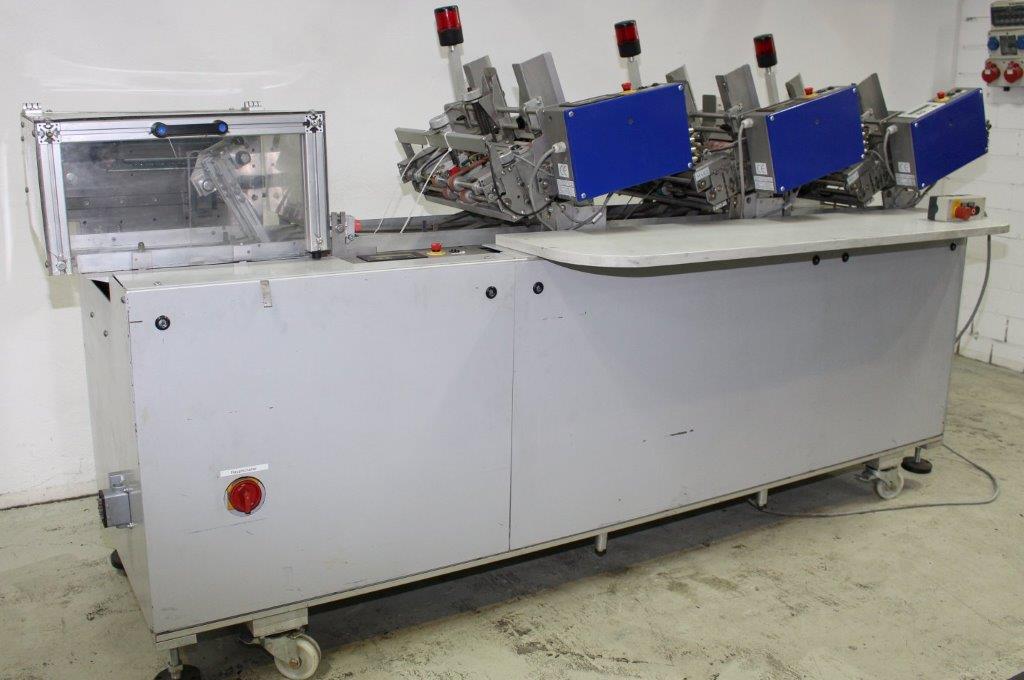

• Gathering machine Popp type 078-20, serial no. 001

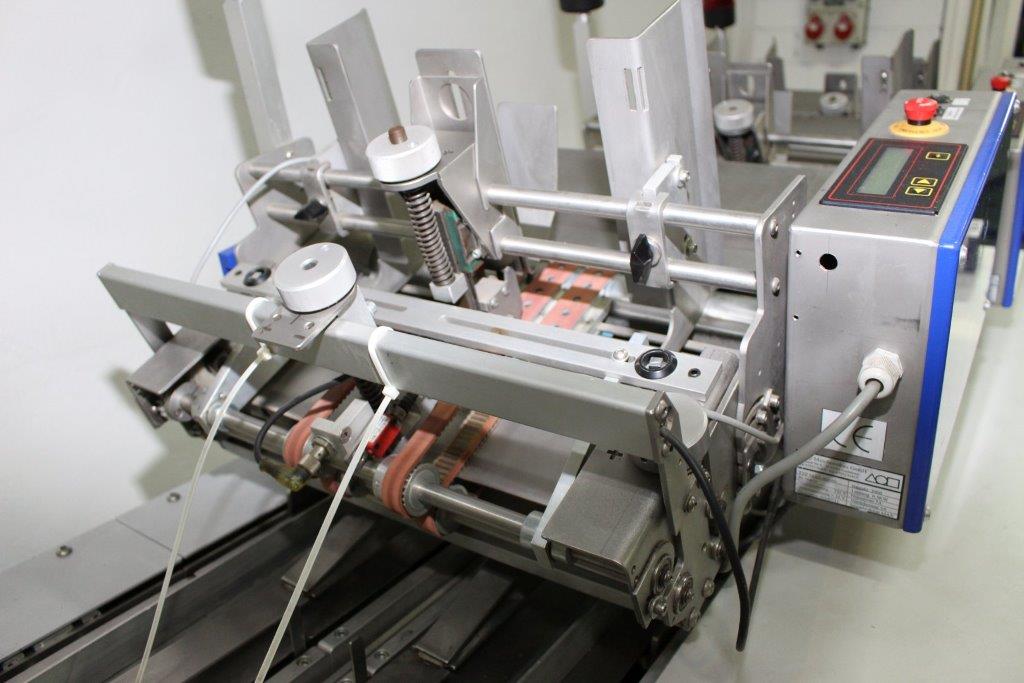

• 3 Separating stations Friction feeder type MAX 063-00, serial no. 00810
• Working width 300mm
• Machine width 450mm
• Smallest product L x W 60 x 60 mm x 80g/m²
• Largest product L x W x D 300 x 300 x 20mm
• Weight 300kg

Function:

• Separating flat products 0-20 mm thick
• Separation by suction belts with open and closed edges in running direction
• Required product prerequisite: Product can be separated from the rest of the pile by pushing off the lowest product

Structure:

• Stacking magazine height 200 mm
• Separation unit, accelerator, double sheet control and control cabinet
• Vacuum kit with 3 belts allows quick changeover to different product widths
• Vacuum adjustable and individually switchable
• Vacuum pump with filter
• Mini-lock gate for products from 30 mm width or pendulum lock for products from 120 mm width
• Mounting on heavy C-foot
• Electrical height adjustment
• Discharge extension with length 300 mm, optionally also 150 mm and 450 mm possible

Control:

• Control and operating panel with drive start-stop, emergency stop switch, single cycle recall
• Operating modes: continuous and cycle operation, preset counter, double sheet monitoring
• Signal interface to third-party machines via Popp X 20
• Language switching for display german-english

Common technical data:

• Product access longitudinal
• Holding down the product through belts
• Space requirement length 2000mm
• belt speed 0-120 m/min, capacity in continuous run with plastic cards 1000 pieces/minute
• Supply 1.0 kW, 240 V, 50 Hz; conversion to US standard possible
